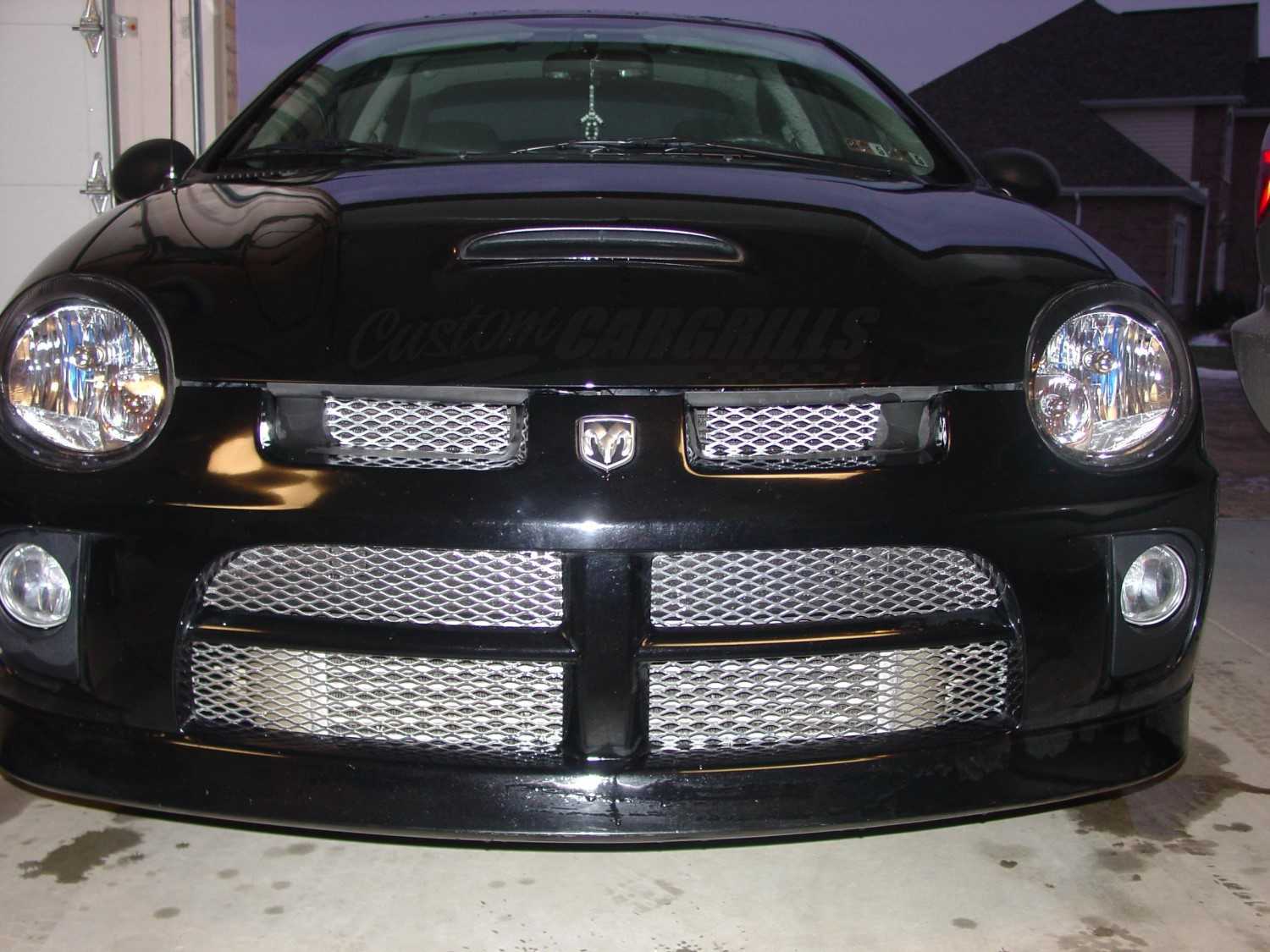

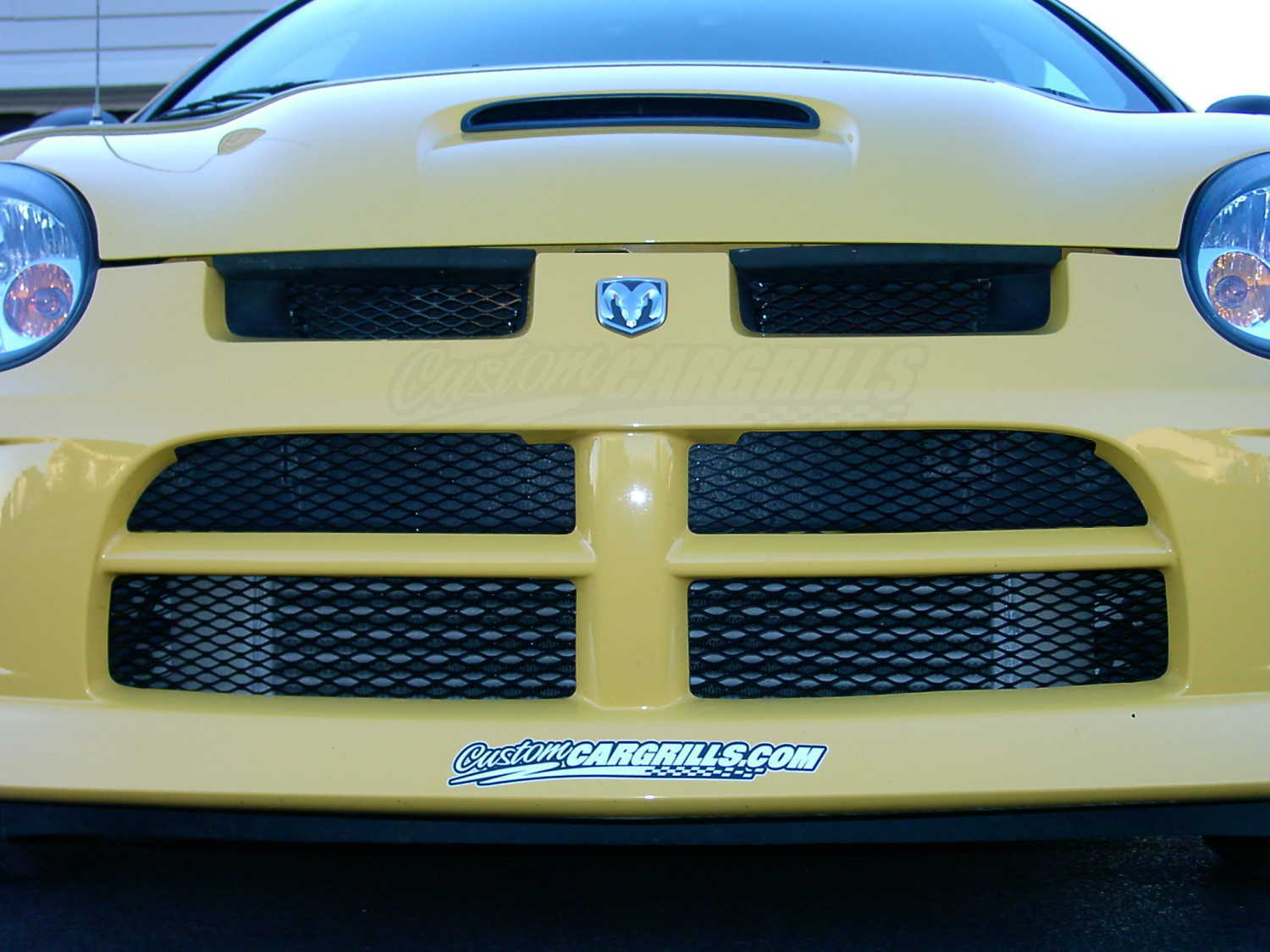

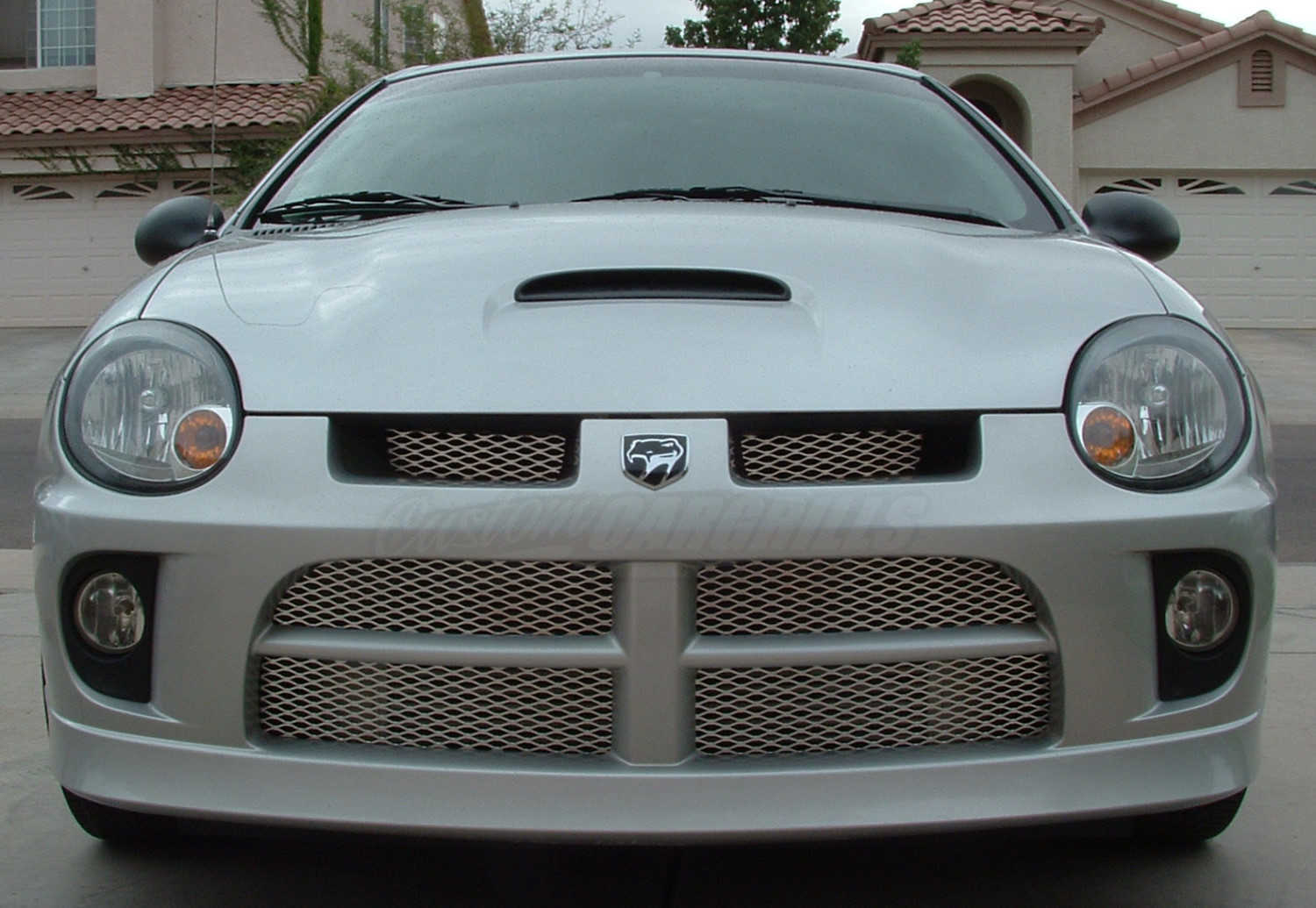

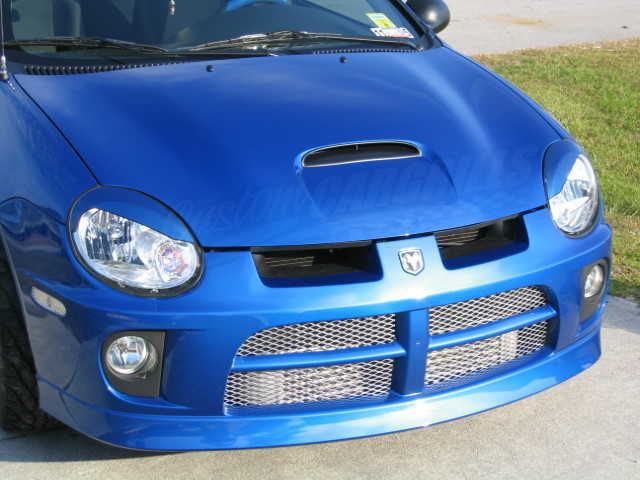

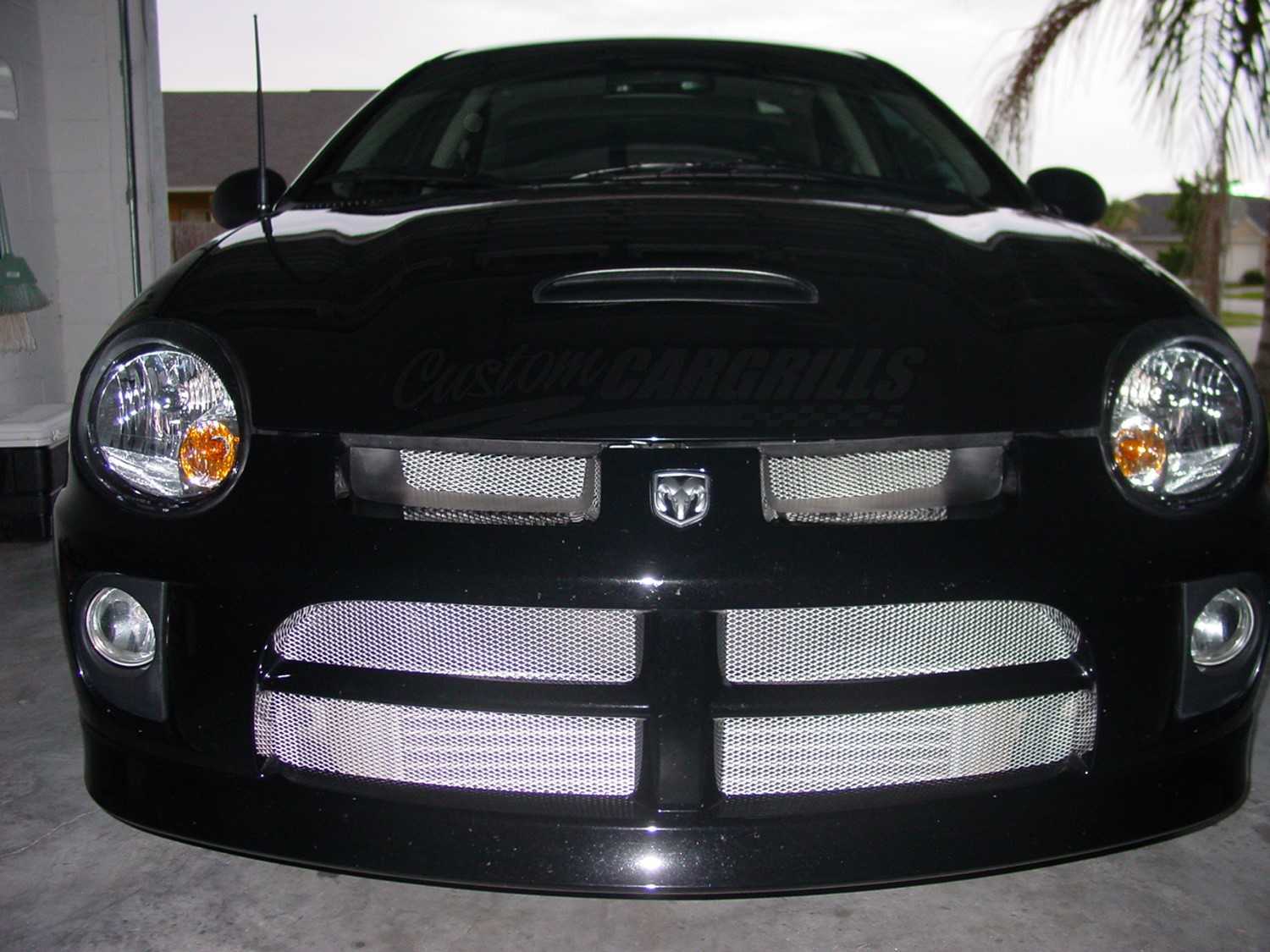

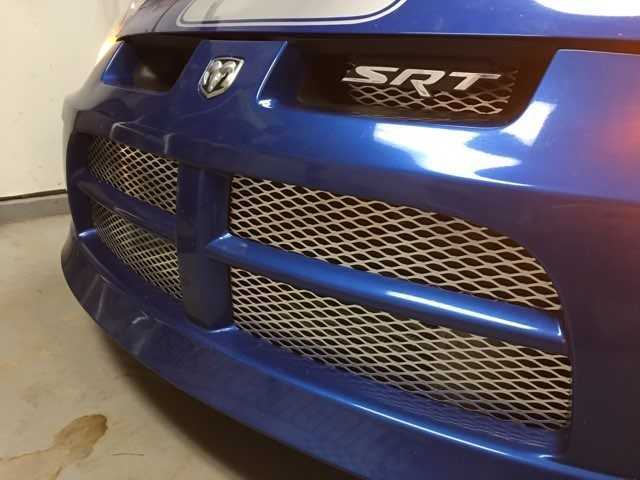

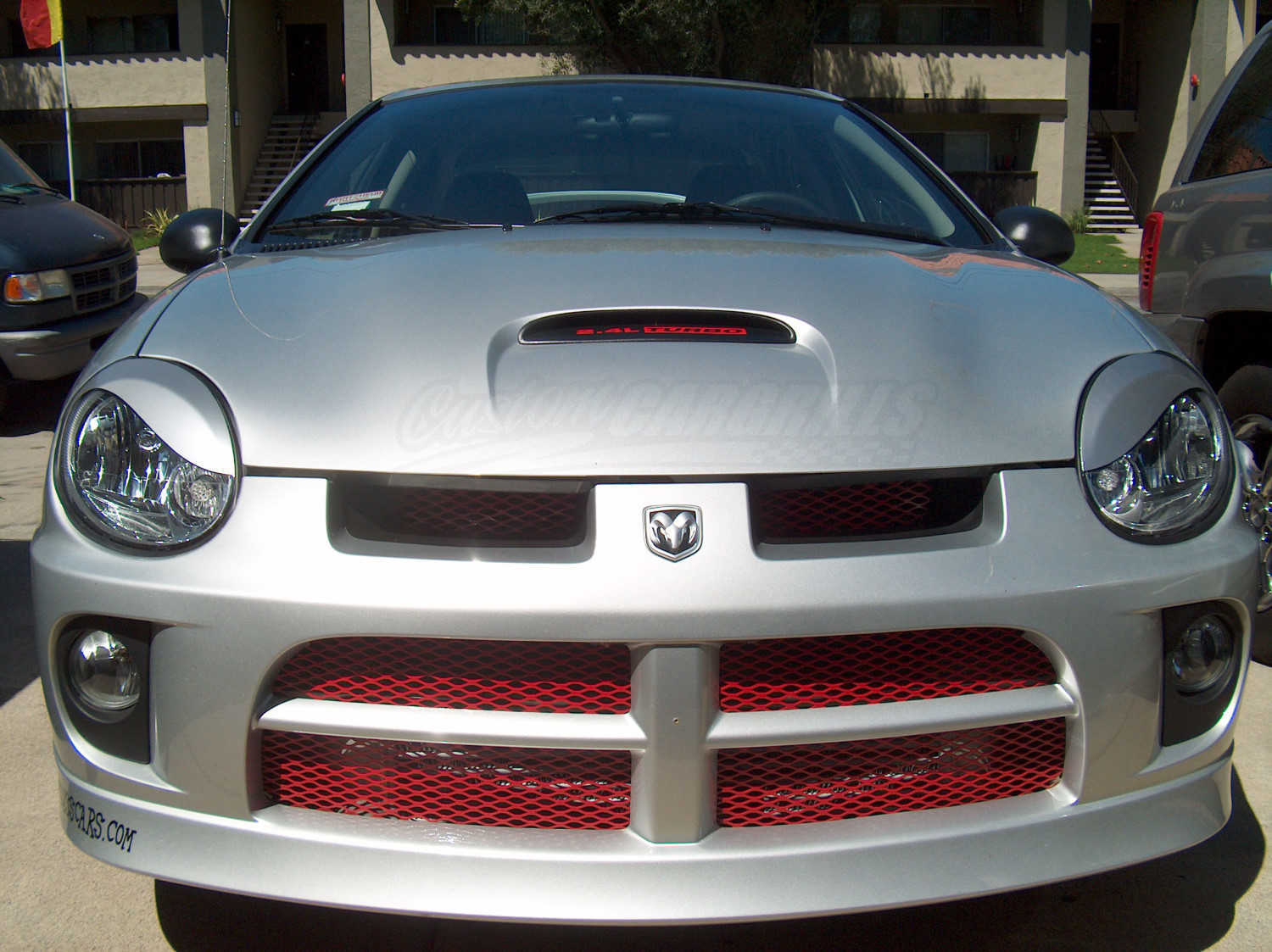

This is a mesh grill set for a Dodge Neon SRT-4 from 2003-2005. The kit includes 4 precut mesh pieces (2 Top Pieces and 2 Bottom Pieces).
These replace the factory lower plastic inserts, and are only compatible if the factory lower crosshair is still intact. The upper pieces can be installed up close or deep on the bumper opening.
Click To Launch Customer Gallery
Tech Data
Mesh Opening Size:
0.30" x 0.90"
Mesh Thickness:
0.051" / 16 gauge
Size (Bottom):
10.5" x 18"
Finish Type:
Raw Aluminum
Country of Origin:
U.S.A.
Does this include mesh for all four lower openings and the two upper openings?
Yes. We include 2 mesh pieces that will cover the 4 lower openings, as well as 2 smaller mesh pieces that will cover the 2 upper openings.
How do the upper mesh pieces install?
The upper mesh pieces can be installed a couple different ways.
They can be installed behind the black plastic piece, by folding excess mesh around the back of the opening and epoxying the mesh on.
Another way to install the mesh is to remove the black plastic portion and epoxy them directly to the back of the painted bumper.
Can I install these mesh pieces if I've cut out the crosshair from my bumper?
No, these will not work with the crosshair removed. You need a fully functioning factory bumper to install these mesh pieces.
