SKU:   Toy-Taco-16-Ext
  UPC:   701327260992
2016 - 2023 Toyota Tacoma Extra Pieces #12016 - 2023 Toyota Tacoma Extra Pieces #22016 - 2023 Toyota Tacoma Extra Pieces #32016 - 2023 Toyota Tacoma Extra Pieces #42016 - 2023 Toyota Tacoma Extra Pieces #52016 - 2023 Toyota Tacoma Extra Pieces #6

2016 - 2023 Toyota Tacoma Extra Pieces

Discounts Apply !
Quantity
-
+
Price: $139.97
  •    Description
  •    Install Instructions
  •    Customer Pics
  •    Tech Specs
  •    FAQs
  •    Pricing
  •    Reviews
  •    Related

These pieces are extra pieces that can add our mesh style to the 3rd gen Tacoma hood, headlight, & fog light areas. Installation is simple and installation hardware is included.

These are laser cut and made in the USA. The fog light pieces do not span the full width of the lower bumper, there is a break between them where the stock bumper is open and often used for a light bar.

Please click on the tabs below for more information.

Hood Piece
1) Hold the mesh piece up to the hood scoop area.
2) Mark the center position of the mounting holes and remove the mesh piece.
3) Drill 3/16" holes in the center of the marked mounting holes.
4) Line the mesh piece up against hood scoop again.
5) Firmly push the supplied plastic rivets through the mesh and into the drilled holes.

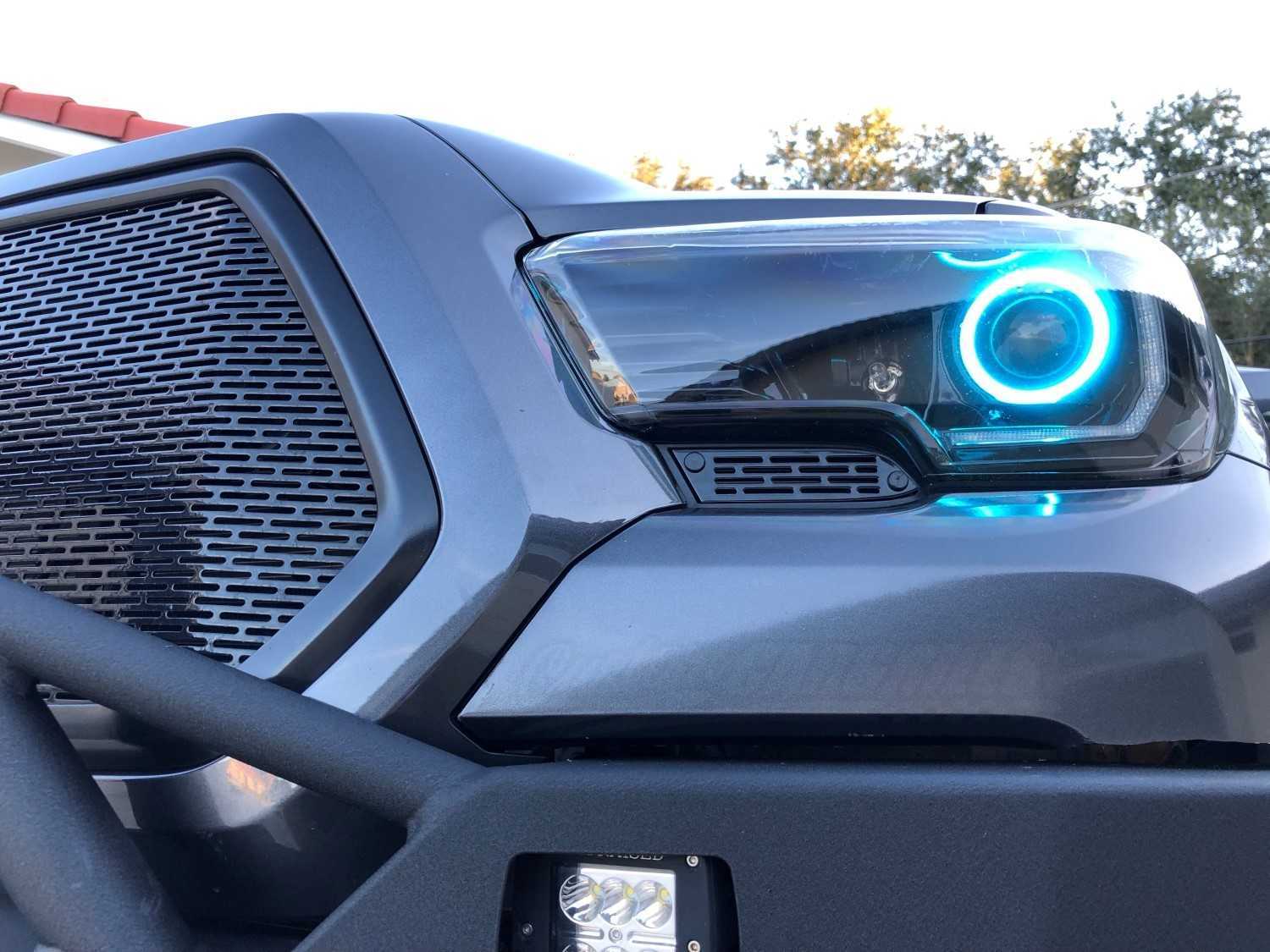

Headlight Pieces
1) Hold the mesh pieces up to the headlight grill area.
2) Mark the center position of the mounting holes and remove the mesh piece.
3) Drill 3/16" holes in the center of the marked mounting holes.
Important: Do not drill too far and puncture the headlight housing.
4) Line the mesh piece up against headlight grill again.
5) Firmly push the supplied plastic rivets through the mesh and into the drilled holes.
Important: The plastic rivet may need to be trimmed to be shorter to properly fit.

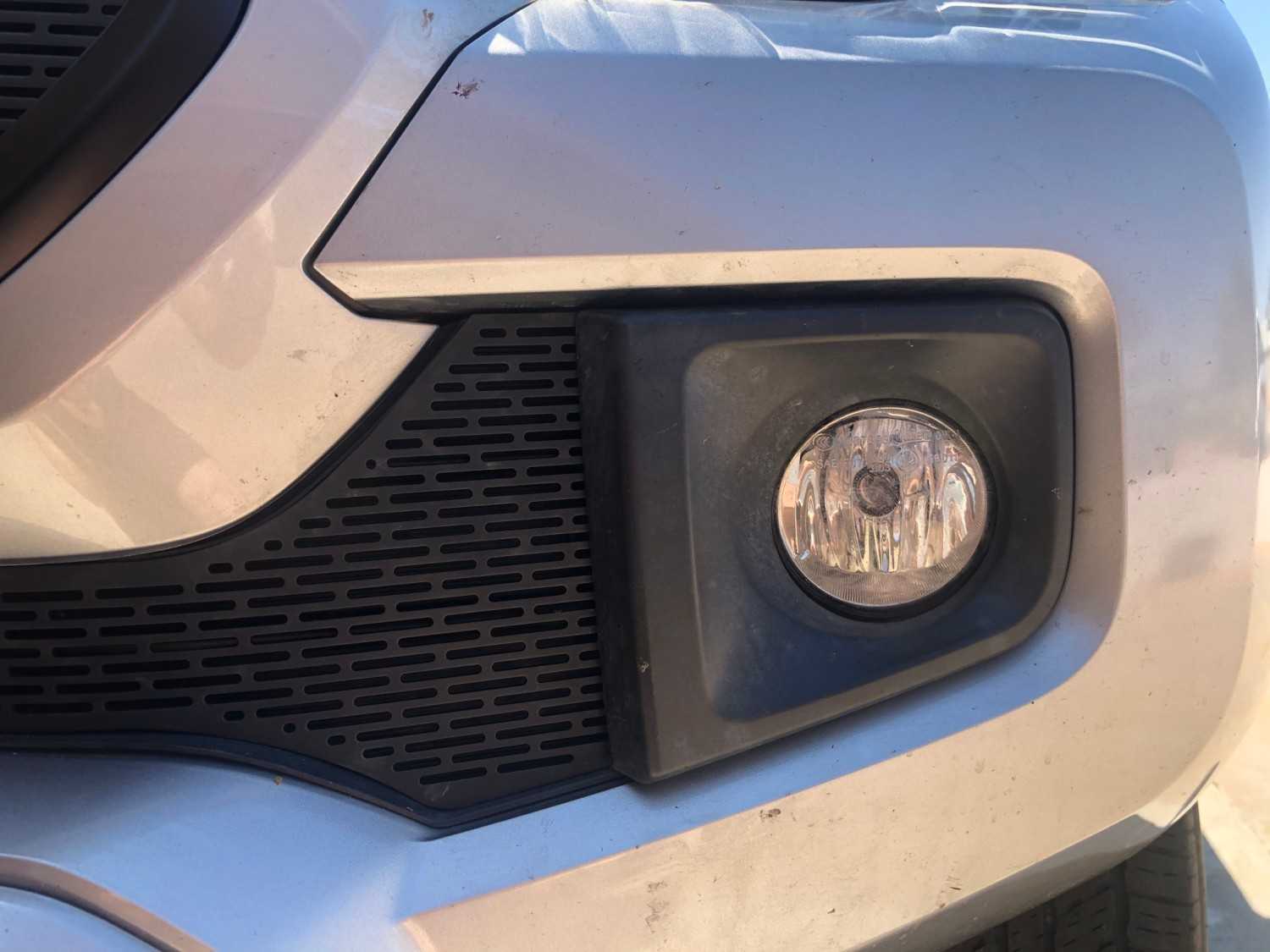

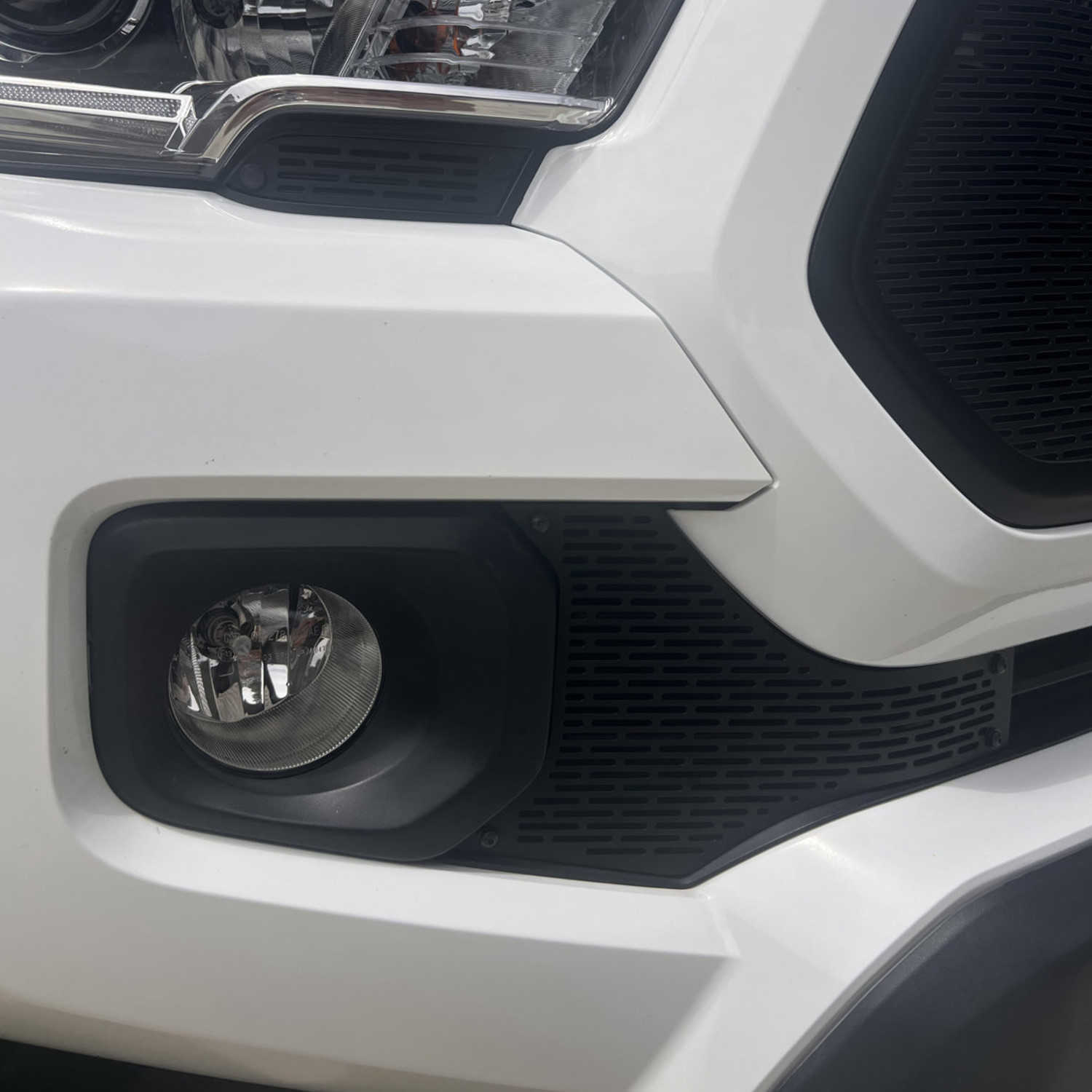

Fog Light Pieces
1a) Remove the main center grill from the truck to gain better access to the back of the lower bumper.
1b) (For Non-SR5 & Limited Models) Remove the foglight bezel and CLICK HERE for more information on modifying the bezel.
2) Hold the mesh pieces up to the fog light area.
3) Mark the center position of the mounting holes and remove the mesh piece.
4) Drill 3/16" holes in the center of the marked mounting holes.
5) Line the mesh piece up against fog light again.
6) With the plastic washer on the bolt, feed the end of the bolt through the front of the grill mesh and drilled openings.
7) Loosely thread the nuts to the bolt on the back of the lower bumper.
8) Use a 5/64" hex key on the bolt head opening and 11/32" socket or wrench to tighten the fasteners.
9) Reinstall the main center grill to the truck.
Grill Mesh
Raw Material:
Aluminum
Mesh Pattern:
Mesh Thickness:
0.065" / 14 Gauge
Open Area:
43%
Finish Type:
Powder Coat
Country of Origin:
U.S.A.
No, these are overlays on top of the factory areas.
Yes, drilling is needed on all of the pieces. Please view the installation instructions for more info.
We laser cut the mesh to emulate the look of the Perforated SS mesh which is available here if you are looking to either make your own mesh pieces or add-on more mesh.
Yes, it's technically possible but typically cost prohibitive to do so.
At this time we are only offering a flat black finish.
Mesh Pricing
Headlight Set
$29.99
Hood Piece
$29.99
Fog Light Set
$169.99
Lower Bumper Mesh
$79.99
2 Product Reviews - Average rating 5 / 5 (Show All)
Sweet
- 7/1/2020
Solid unique product
Great product!!!!
- 11/16/2019
Great product!!! Worth the money, perfect fit.
