SKU:   Toyota_Taco_2016
  UPC:   701327259576
2016 - 2017 Toyota Tacoma Mesh Insert #12016 - 2017 Toyota Tacoma Mesh Insert #22016 - 2017 Toyota Tacoma Mesh Insert #32016 - 2017 Toyota Tacoma Mesh Insert #42016 - 2017 Toyota Tacoma Mesh Insert #52016 - 2017 Toyota Tacoma Mesh Insert #6

2016 - 2017 Toyota Tacoma Mesh Insert

Discounts Apply !
Quantity
-
+
Price: $79.99
  •    Description
  •    Install Instructions
  •    Customer Pics
  •    Tech Specs
  •    FAQs
  •    Reviews
  •    Related

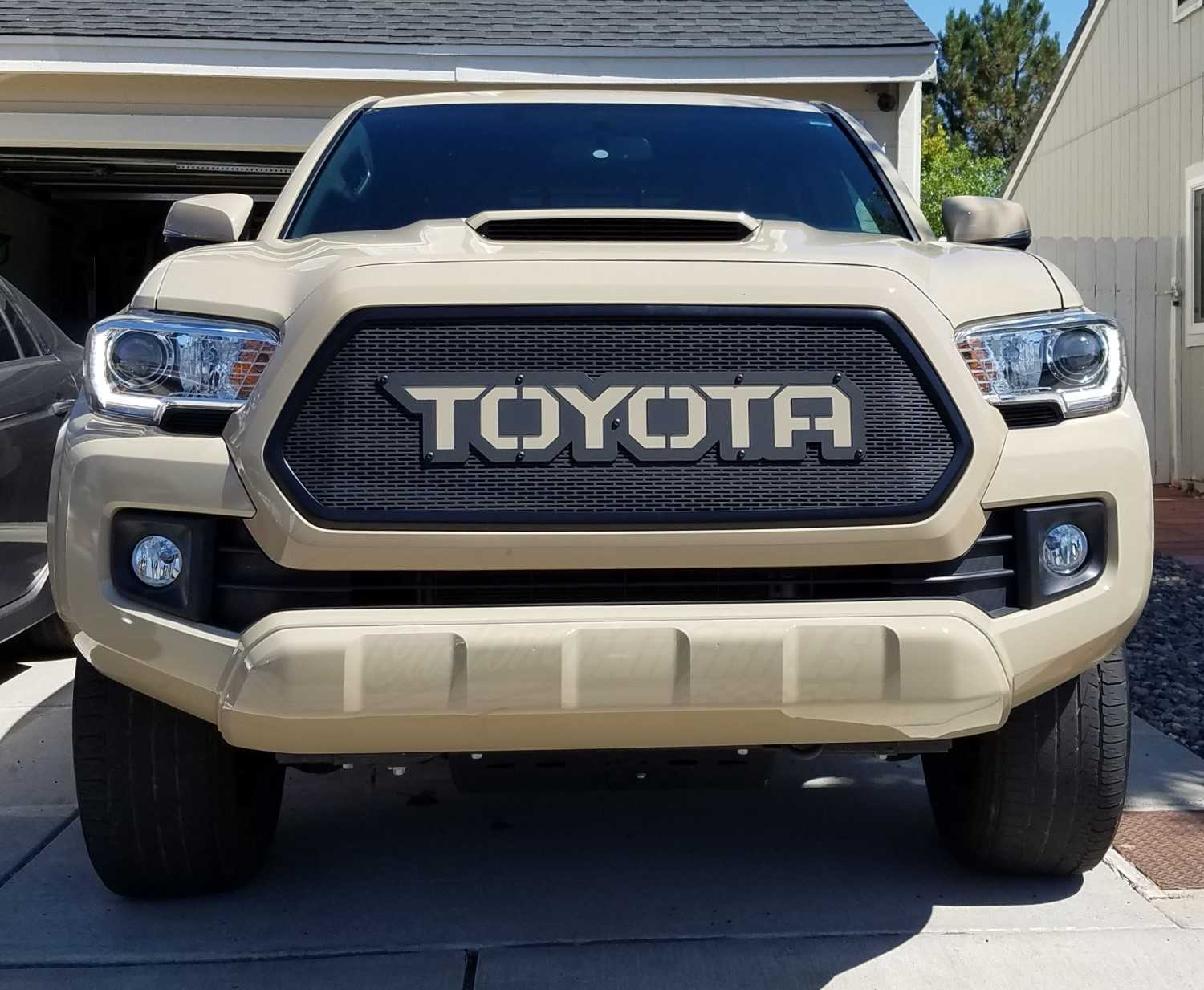

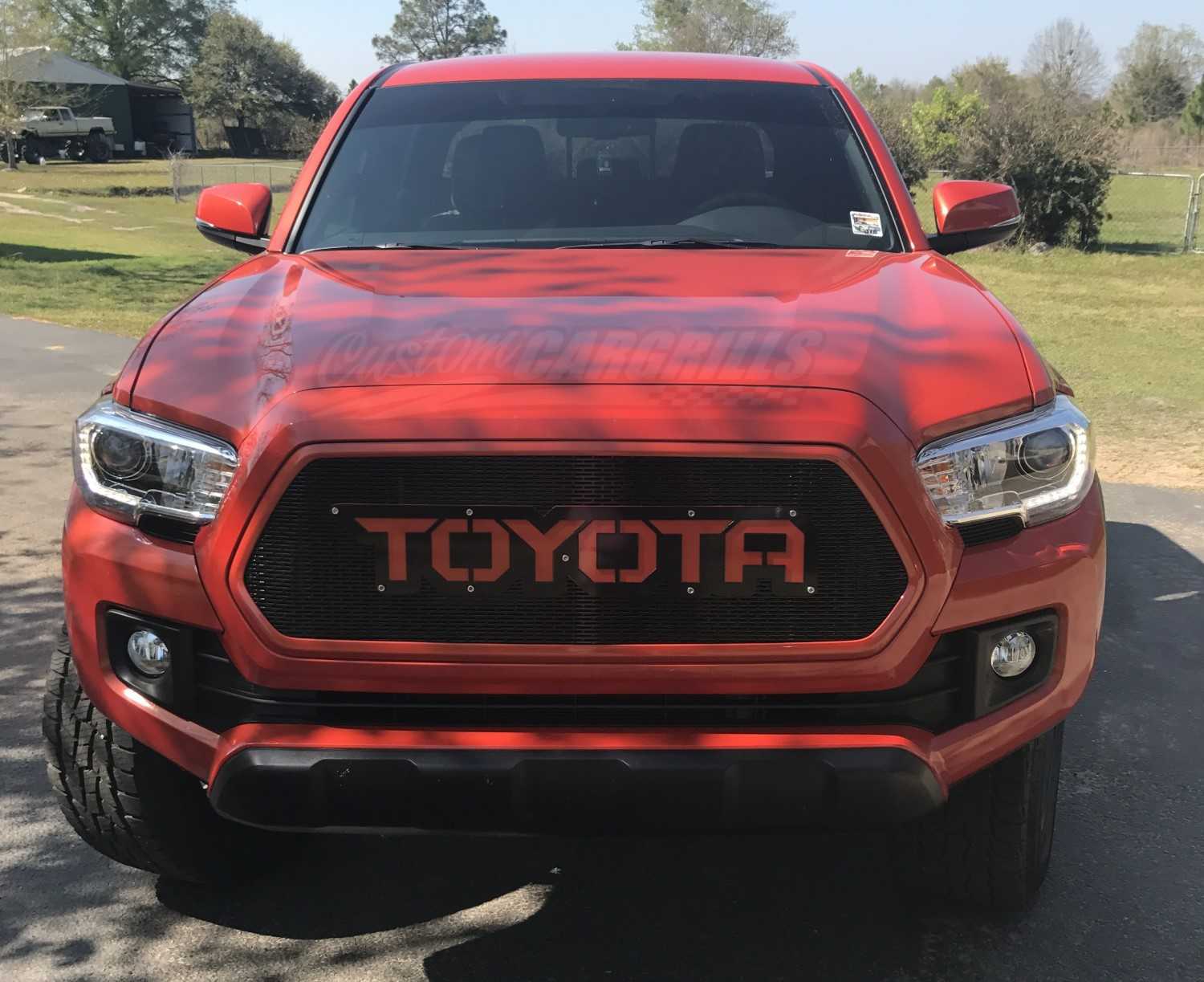

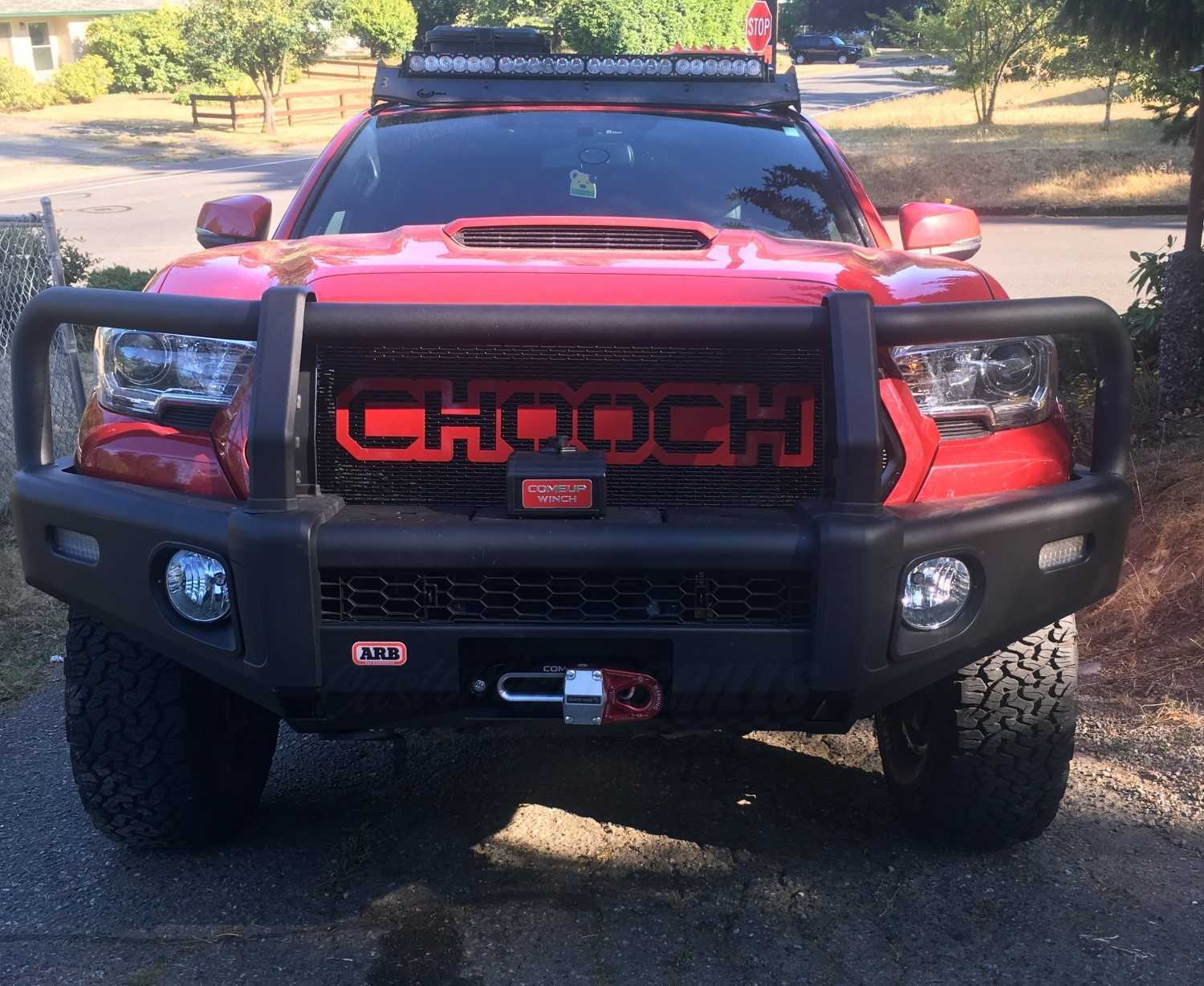

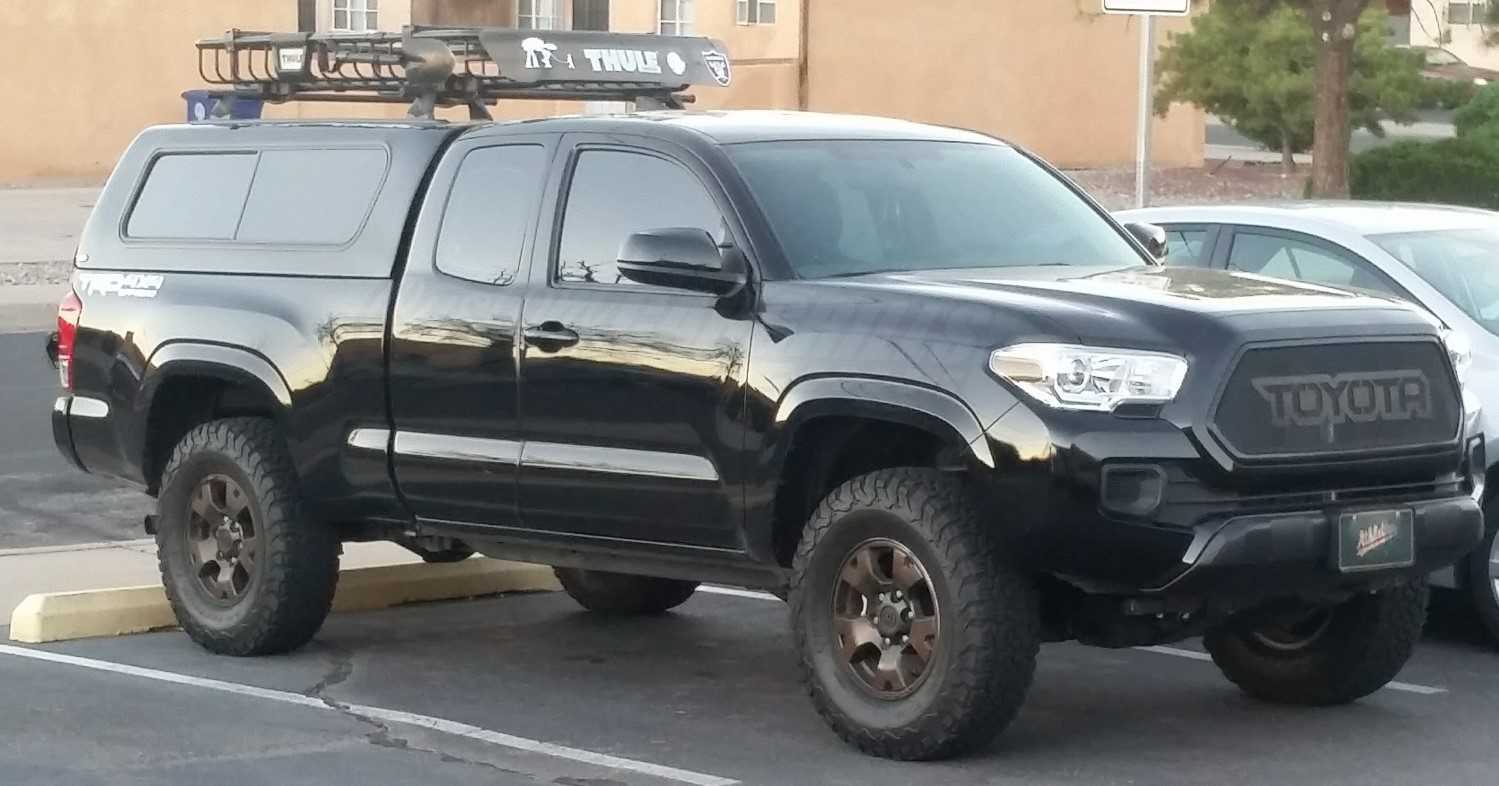

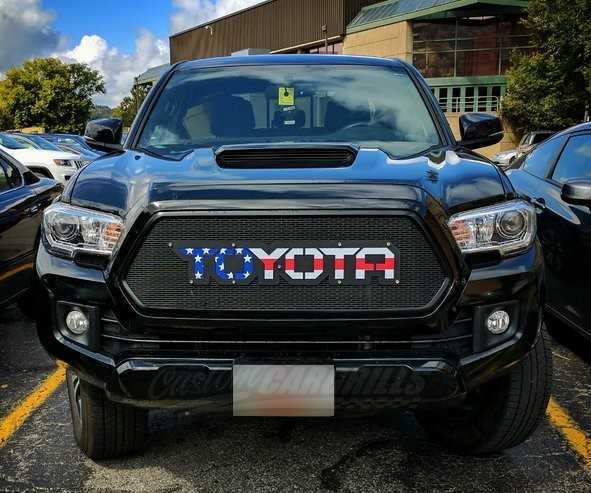

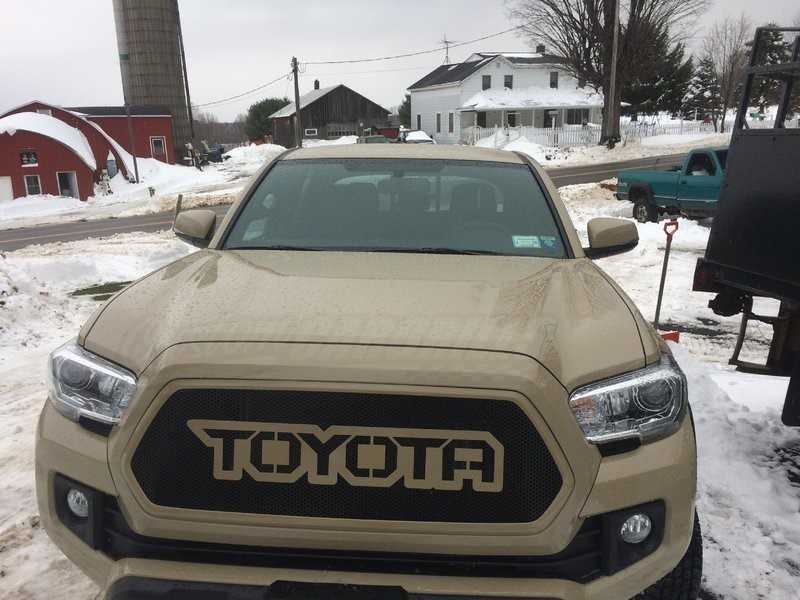

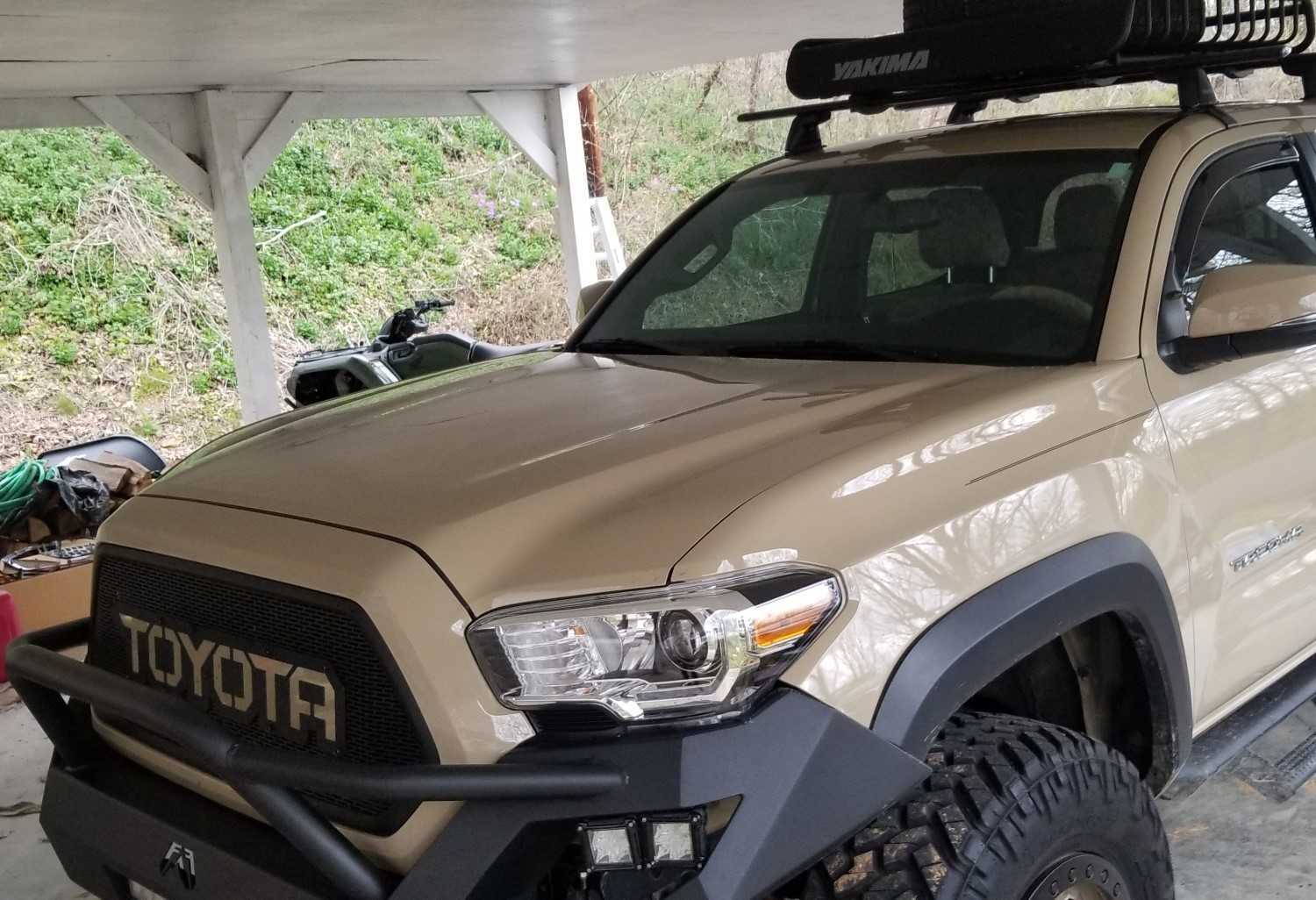

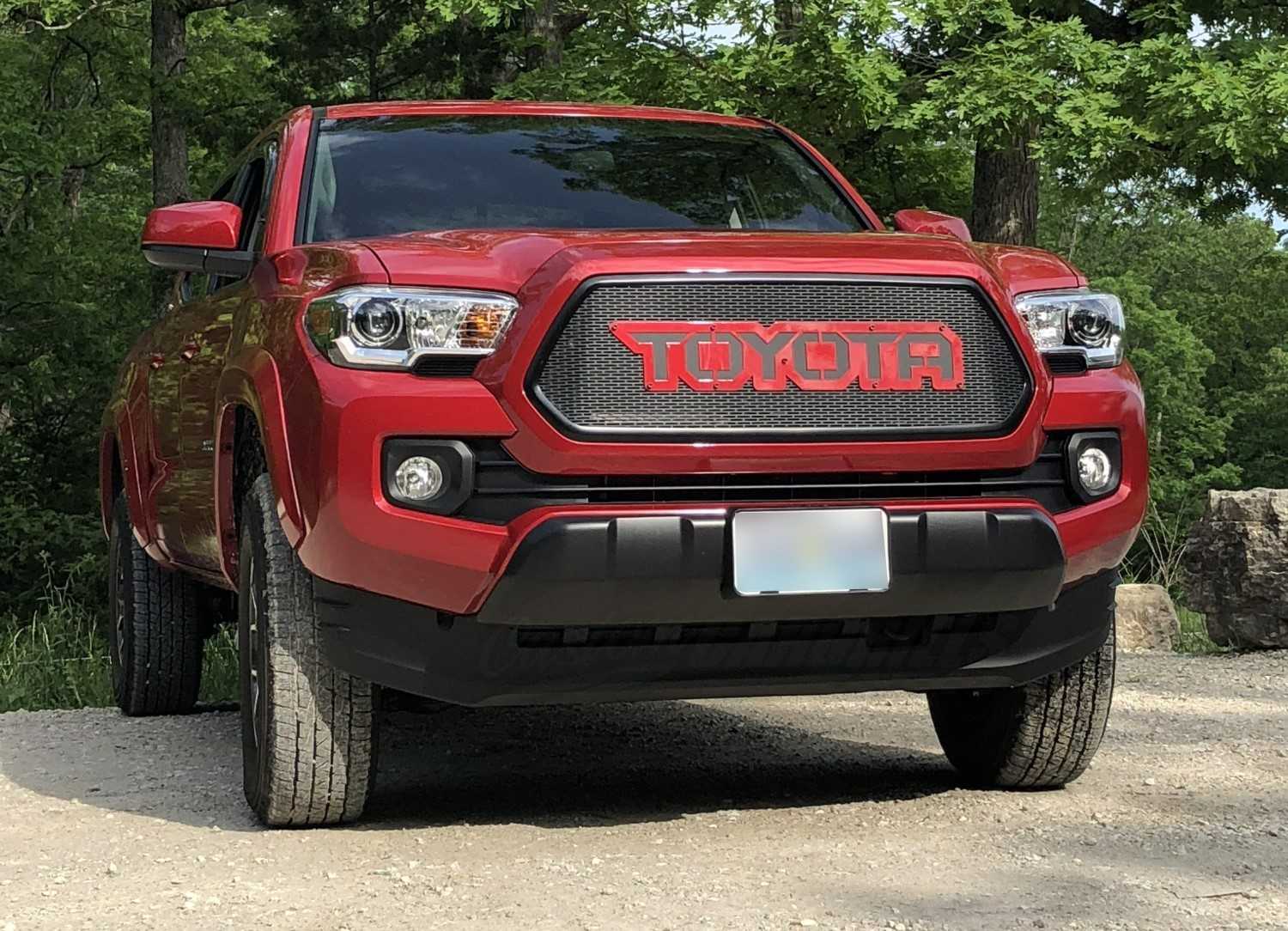

This is a slotted mesh grill for a Toyota Tacoma from 2016-2017. These mesh pieces are a direct replacement for your existing inner grill area for your 2016-17 Toyota Tacoma.

Installation of configurations with the bezel are a direct swap of factory components, using factory hardware. Configurations without the bezel need to be assembled by the owner.

Additional lettering, emblems, or grill bezel can be added to personalize the grill to your taste. These grilles are made in the USA.

These can be configured as mesh only pieces that will fit into your existing bezel as shown in our installation video, or can be ordered with a bezel that will arrive completely pre-assembled and ready to install out of the box.

Mesh + Bezel Installation
Click To Open .PDF
DIY Assembly Instructions

This only applies to configs without a bezel selected.
Grill Mesh
Raw Material:
Aluminum
Mesh Pattern:
Mesh Thickness:
0.065" / 14 Gauge
Open Area:
43%
Size:
12" x 40.25"
Weight:
~1.5 lbs
Finish Type:
Powder Coat
Country of Origin:
U.S.A.
Grill Bezel
Raw Material:
Plastic
Size:
13" x 41"
Weight:
~8 oz
Finish Type (Black):
Raw Plastic
Finish Type (Chrome):
Chrome
Finish Type (Colored):
Wet Spray
Country of Origin:
U.S.A.
Emblem Tech Data
Raw Material:
Plastic
Size:
2.5" x 14"
Weight:
~2 oz
Finish Type (White Letters):
Wet Spray
Finish Type (Color Matched):
Vinyl or Wet Spray
Country of Origin:
Japan
Round Letters Data
Raw Material:
Aluminum
Size:
3.6" Tall
Weight:
~6 oz
Finish Type (Black):
Powder Coated
Finish Type (Color Matched):
Wet Spray
Country of Origin:
U.S.A.
Sharp Letters Data
Raw Material:
Aluminum
Size (TOYOTA):
4" Tall
Size (TACOMA):
3.6" Tall
Weight:
~6 oz
Finish Type (Black):
Powder Coated
Finish Type (Color Matched):
Wet Spray
Country of Origin:
U.S.A.
2.25in. TRD Emblem
Raw Material (Front):
Stainless Steel
Raw Material (Back):
Aluminum
Size:
~2.25" x 7"
Weight:
~4 oz
Finish Type (Flat Black):
Powder Coat
Finish Type (Basic Colors):
Vinyl
Finish Type (Flag):
Vinyl
Finish Type (Color Match):
Wet Spray
Country of Origin:
U.S.A.

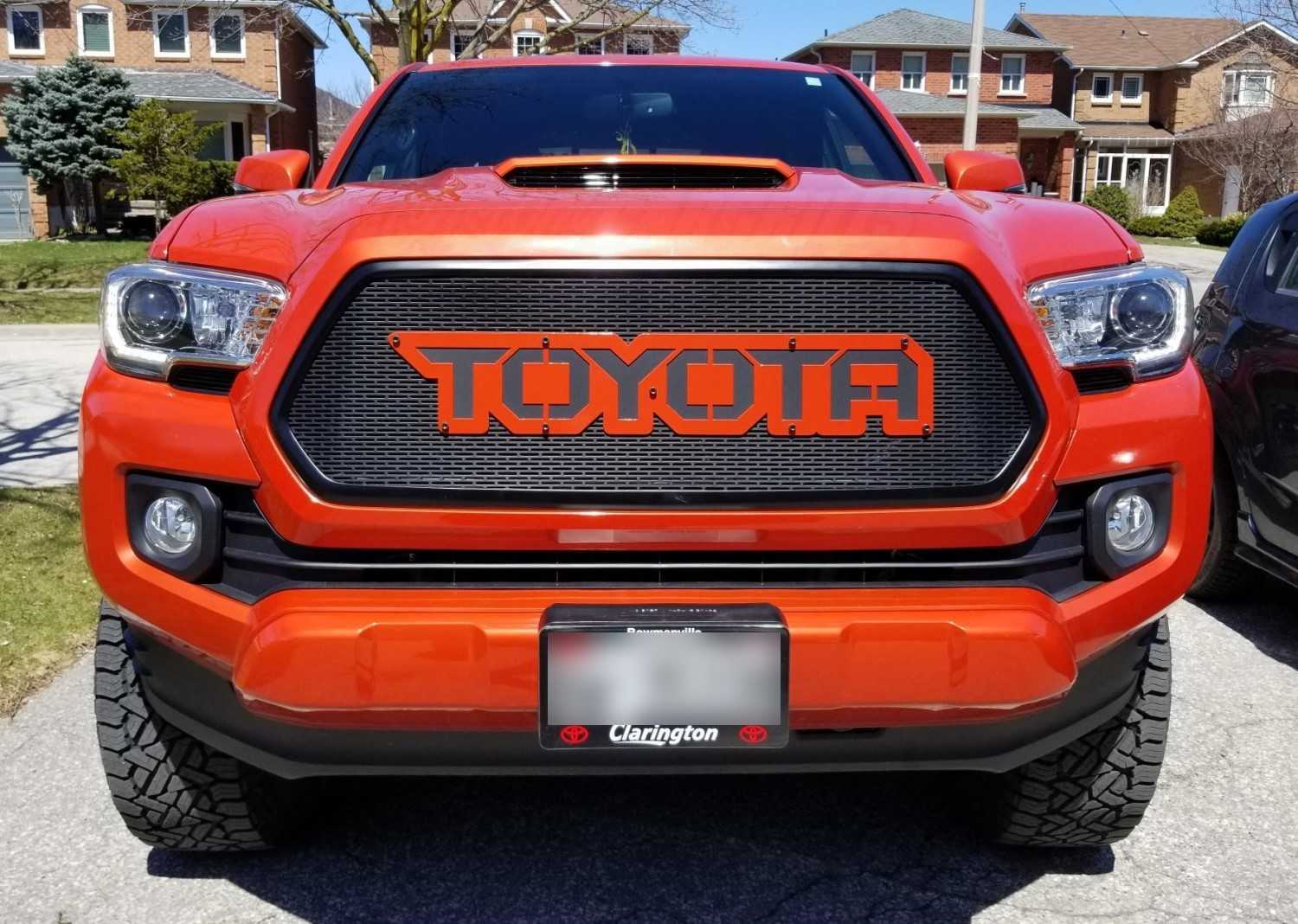

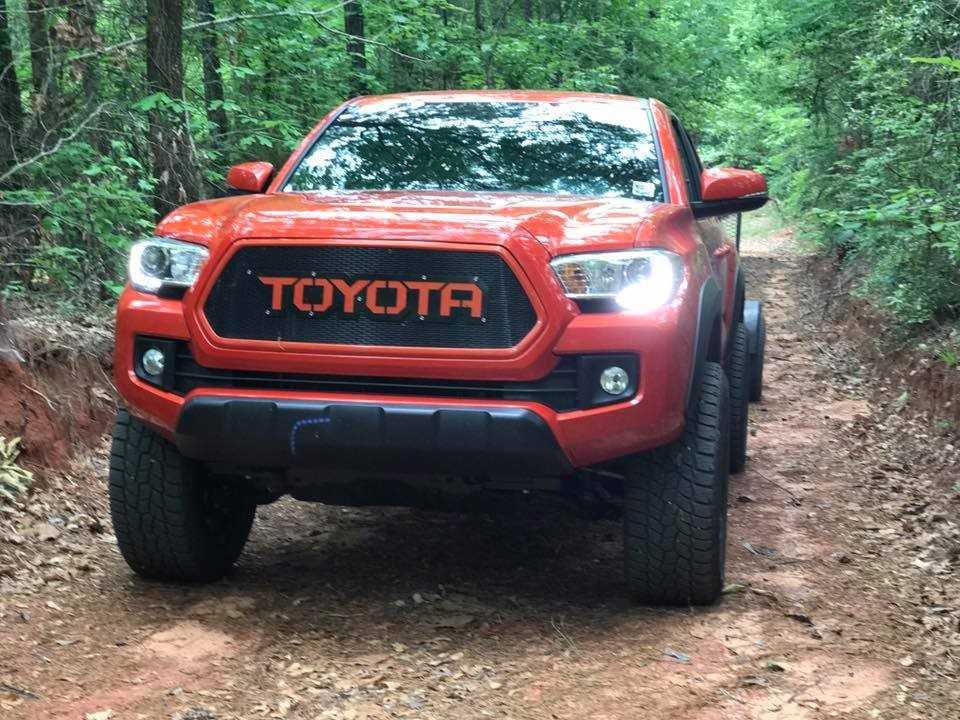

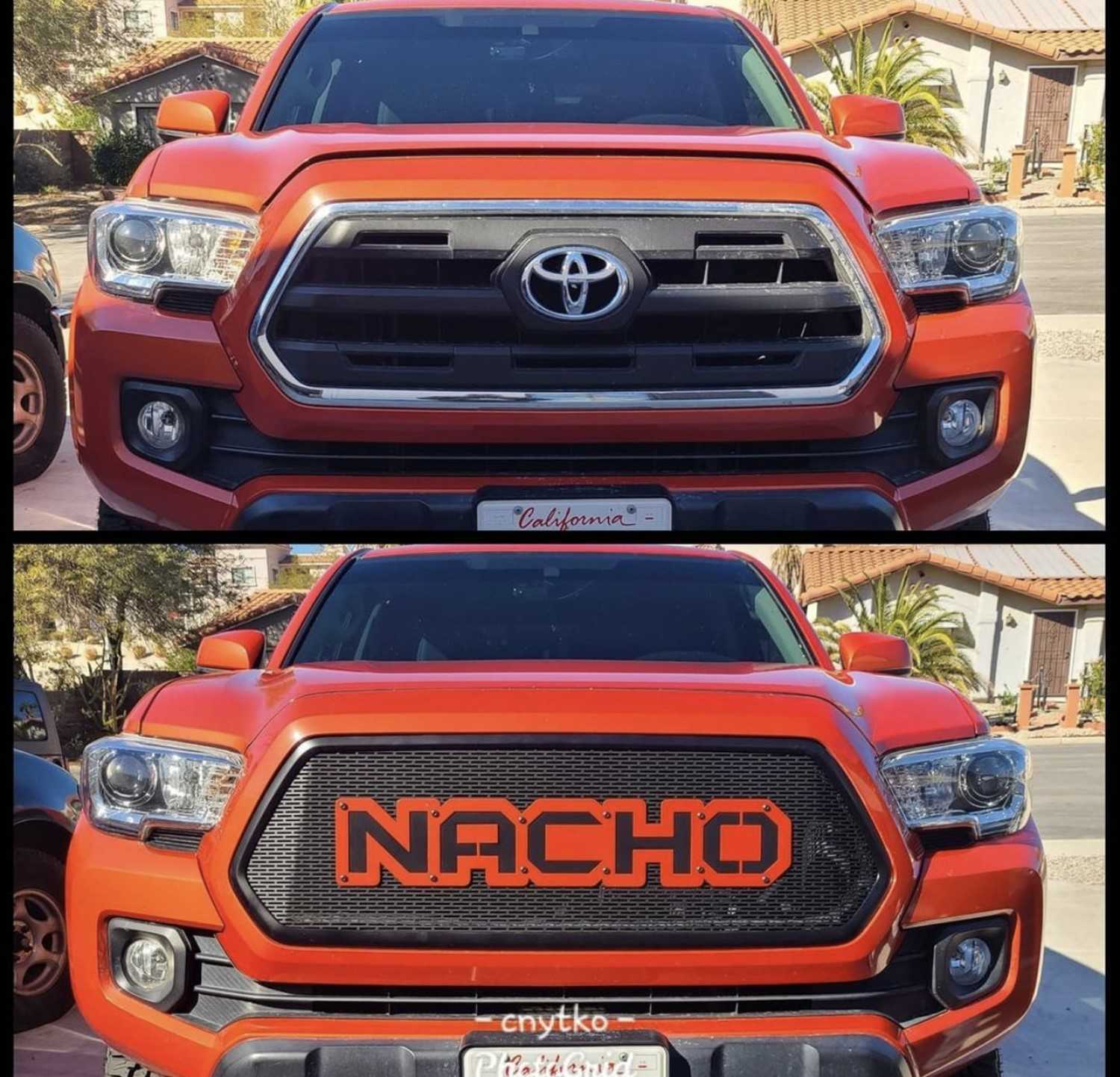

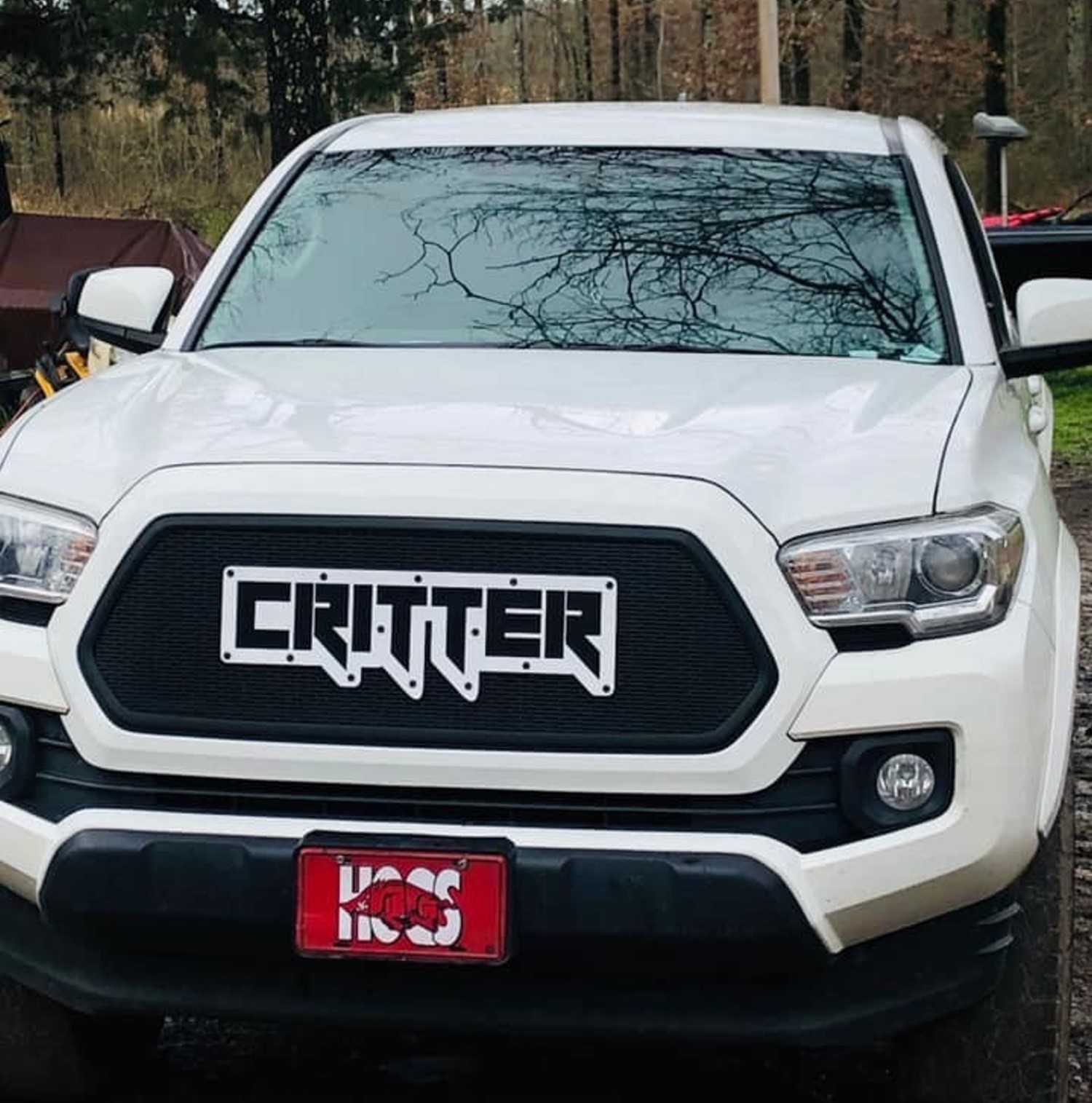

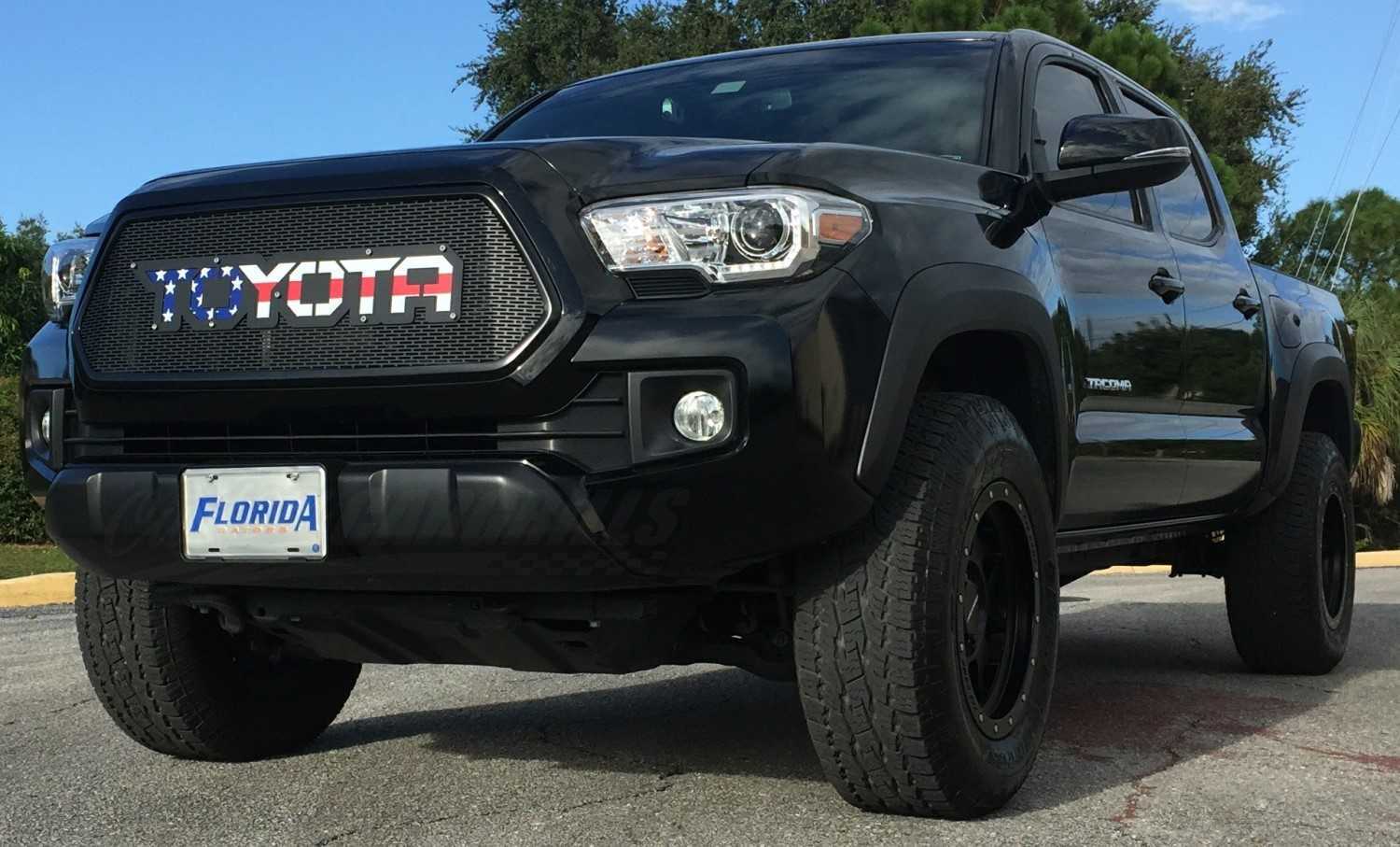

5.5in. Letter Plate
Raw Material:
Aluminum
Size:
~5.5" x 28"
Weight:
~1.5 lbs
Finish Type (Flat Black):
Powder Coat
Finish Type (Color Match):
Wet Spray
Finish Type (Flag):
Vinyl
Country of Origin:
U.S.A.
If you purchase a configuration that starts with the text "Mesh + Bezel" then Yes, we buy OEM bezels directly from Toyota to mount our mesh piece on. If you purchase a configuration without a bezel then the owner will need to mount the mesh to a bezel themselves.
If you select one of the options with "Mesh + Bezel", then yes the grille will arrive pre-assembled. If you select a configuration without the bezel then you will receive only the mesh and it will need to be assembled onto a bezel for it to be installed on the truck.
No. Just unclip and screw your old grill inner parts to remove it. This new grill clips in and reuses the OEM screws that hold the bezel in place. No cutting or drilling needed.
Yes, some other styles are possible, but only from raw aluminum (not from black mesh). If you want to paint or powder coat the mesh yourself, contact us for more info as to how to order a different mesh.
Yes, we have pieces for the headlights, hood, and fog light areas available here.
Yes, as long as you have a valid automotive paint code to give us then we can paint it that color.
If you select "Yes", then we precisely center and space apart the letters, and apply two coats of weatherproof adhesive. This will ensure the letters stay onto the mesh for the life of the grille.

If you select "No Thanks", then we ship the letters loose and the installer will need to perform the application technique to adhere the letters to the mesh.
If you select "Yes", then we sand down the back of the emblem smooth, center the emblem, & apply two coats of weather proof adhesive. This will ensure the emblem stays onto the mesh for the life of the grille.

If you select "No Thanks", then we ship the emblem loose and the installer will need to perform the modifications needed to apply the emblem to the mesh.
15 Product Reviews - Average rating 4.9 / 5 (Show All)
lightweight great features
- 8/23/2023
excellent quality nice design aces
Awesome
- 5/7/2020
Grill actually came faster than I thought it would. Didn't know if the black would match the front bumper on my Tacoma and it matched perfectly. Install was extremely simple. The grill totally brought this truck to life. Words can't even explain how much better it looks over the factory grill. I extremely recommend custom cargrills to everyone wanting to make their car or truck look better.
Easy install, Looks awesome!!!
- 3/7/2018
Video instructions were easy to follow, the Grill quality is awesome!!!
These guys know what they are doing and know how to treat customers!!
black
- 6/30/2017
By the photo shown, I expected the entire grill area to be black and this was the look I was going for. But, after this grill was installed, I still had a 2" chrome strip around the grill. I might get this strip painted black at a latter date just as a preference for my intended look. Be it noted, you have to go buy the specialty glue required to install this grill(not included due to postal rules R/T a fire hazard) and seek installment instructions on line. P.S. it took 48 hrs for glue to completely dry rather than the 24 hrs per product glue recommendations.
Awesome
- 5/20/2017
Super easy installation. With the help of YouTube anything impossible though. Looks great and transforms the cosmetics of any rig.
Nice
- 4/18/2017
Saved a lot of money doing it myself and looks good.
